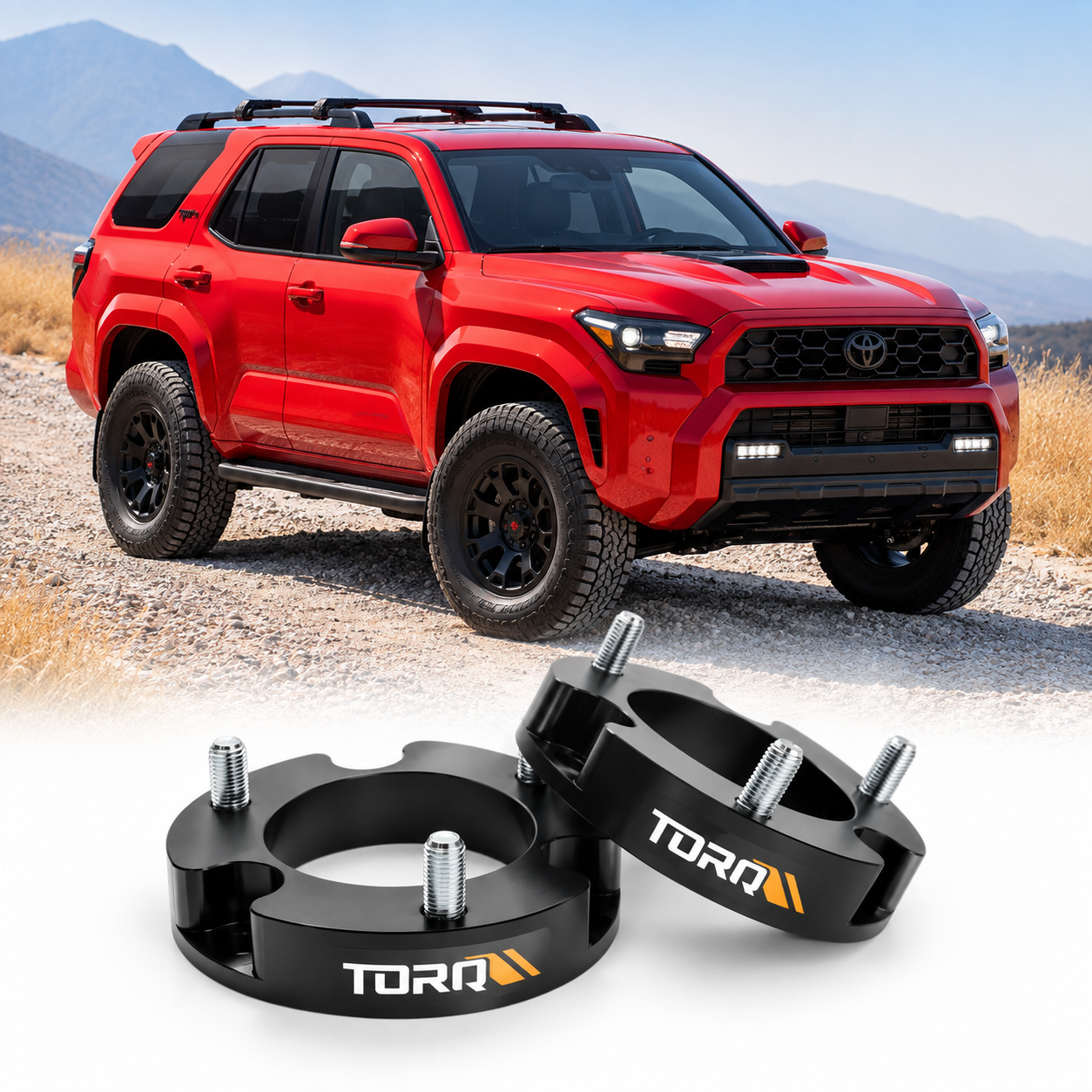

TOYOTA 4RUNNER 2" FRONT LEVELING KIT | GEN 5 & GEN 6
Level the 4Runner. Keep the Factory Suspension.
Give your 4Runner a more balanced stance and approximately 2" of front lift while retaining the factory shocks and springs.
2" Front Lift | CNC-Machined 6061-T6 Billet Aluminum | Made in USA
✓ Reduces Factory Rake
✓ Retains Factory Shocks & Springs
✓ CNC-Machined Billet Aluminum
✓ Designed • Machined • Built in Utah
A SIMPLE SOLUTION TO FACTORY RAKE
More Stance. More Clearance. No Suspension Replacement.
The 4Runner's factory stance leaves noticeable front-to-rear rake. The TORQ 2" Front Leveling Kit raises the front approximately 2" for a more balanced stance and additional tire clearance—without replacing your factory shocks and springs.
It's a straightforward solution for 4Runner owners who like the factory suspension but want a more level, capable-looking setup.
WHY THE TORQ 2" LEVEL?
BETTER STANCE
Raises the front approximately 2" to reduce factory rake and give the 4Runner a more balanced, planted appearance.
PRECISION BILLET COMPONENTS
CNC-machined from 6061-T6 billet aluminum and black anodized for precise fit, corrosion resistance and a clean OEM+ appearance.
KEEP THE FACTORY SUSPENSION
Designed to work with the factory strut assembly, allowing you to retain the Toyota shocks and springs already on the vehicle.
TORQ VS. THE ALTERNATIVES
| BUDGET SPACER | TORQ 2" LEVEL | FULL SUSPENSION | |
|---|---|---|---|
| Levels Front Stance | ✓ | ✓ | ✓ |
| Retains Factory Shocks & Springs | Usually | Yes | No |
| CNC-Machined Billet Components | Varies | Yes | Varies |
| Installation Complexity | Low–Moderate | Low–Moderate | Higher |
| Changes Shock/Spring Package | No | No | Yes |
| Best For | Lowest-Cost Level | Premium OEM+ Level | Suspension-Performance Builds |
The goal isn't to replace a suspension system.
If you're happy with the way your 4Runner rides and simply want a more level stance, additional front height and room for a larger tire setup, the TORQ 2" Leveling Kit offers a simpler approach while retaining the factory shock and spring package.
WHEEL & TIRE FITMENT
How Big of a Tire Can I Run?
The TORQ 2" Front Level gives your 4Runner a more balanced stance and additional room for larger tires. Because Gen 5 and Gen 6 4Runners have different wheel and clearance requirements, use the guide for your generation below.
GEN 5 4RUNNER | 2010–2024
17" WHEELS
| TIRE SIZE | APPROX. DIAMETER | OUR TAKE |
|---|---|---|
| 265/70R17 | 31.6" | ✓ EASY FIT |
| 275/70R17 | 32.2" | ★ RECOMMENDED |
| 285/70R17 | 32.7" | AGGRESSIVE 33" |
THE EASY ANSWER
275/70R17 is our go-to recommendation for customers looking for a straightforward tire upgrade with the TORQ 2" level.
Want the fuller look of a 33"? 285/70R17 is a very popular Gen 5 setup, but wheel offset, alignment, tire dimensions and individual vehicle clearances become more important. Minor clearance modifications may be required.
GEN 6 4RUNNER | 2025+
17" WHEELS
| TIRE SIZE | APPROX. DIAMETER | OUR TAKE |
|---|---|---|
| 275/70R17 | 32.2" | ✓ EASY FIT |
| 285/70R17 | 32.7" | ★ RECOMMENDED 33" |
| 285/75R17 | 33.8" | ★ POPULAR 34" |
18" WHEELS
| TIRE SIZE | APPROX. DIAMETER | OUR TAKE |
|---|---|---|
| 275/65R18 | 32.1" | ✓ EASY FIT |
| 285/65R18 | 32.6" | ★ RECOMMENDED 33" |
| 295/60R18 | 31.9" | WIDER / AGGRESSIVE |
THE EASY ANSWER
For a Gen 6 4Runner, 285/70R17 is a great 33" setup for customers looking for an easy step up in tire size.
Want more? The TORQ 2" level also works well with select 34" tire setups, including 285/75R17, when paired with the right wheel specifications and appropriate clearance modifications.
WHEEL OFFSET MATTERS
Tire size is only part of the equation. Wheel width and offset determine where the tire sits in relation to the suspension, body and fender liner.
GEN 5: Factory or moderate-offset wheels generally make larger tire fitment easier. Moving the wheel farther outward can increase rubbing at the fender liner and body mount.
GEN 6: For aftermarket 17" and 18" wheels with 34" tire setups, approximately +20mm to +30mm offset is a strong target.
GEN 6 — RUNNING 34s?
For many 34" Gen 6 setups, we recommend removing the factory crash plates behind the front wheels for additional clearance. Mud-flap removal and minor fender-liner adjustment may also be required depending on the exact wheel-and-tire combination.
FITMENT NOTE: Tire dimensions vary by manufacturer. Actual clearance depends on tire size, wheel width and offset, alignment, trim level and individual vehicle configuration. More aggressive combinations may require trimming or other clearance modifications.
WHAT'S INCLUDED
Everything You Need for the Front Level

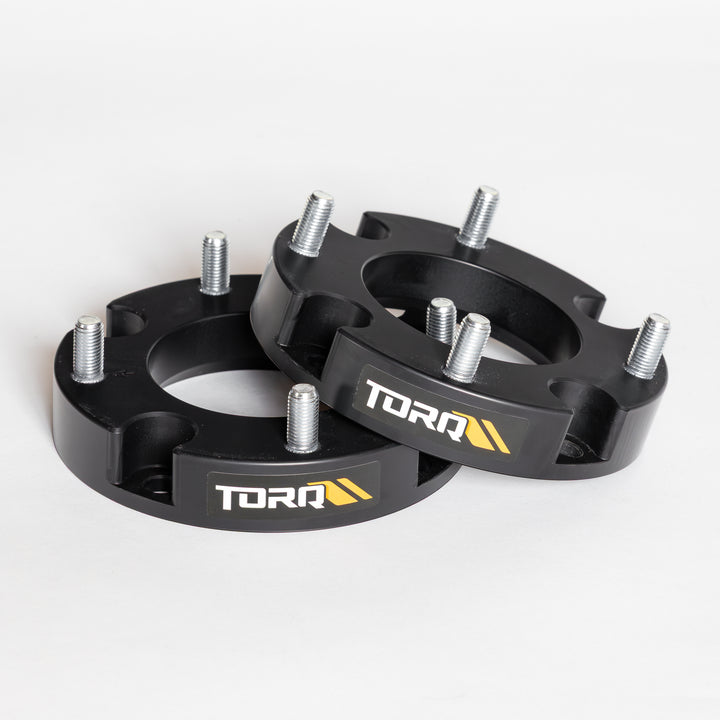

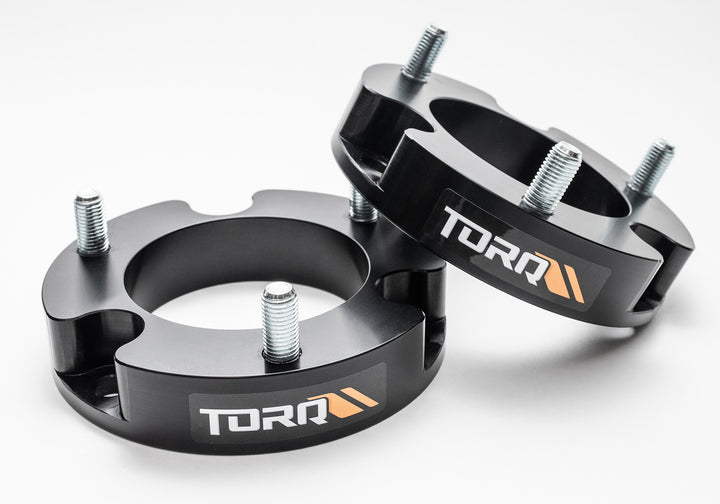

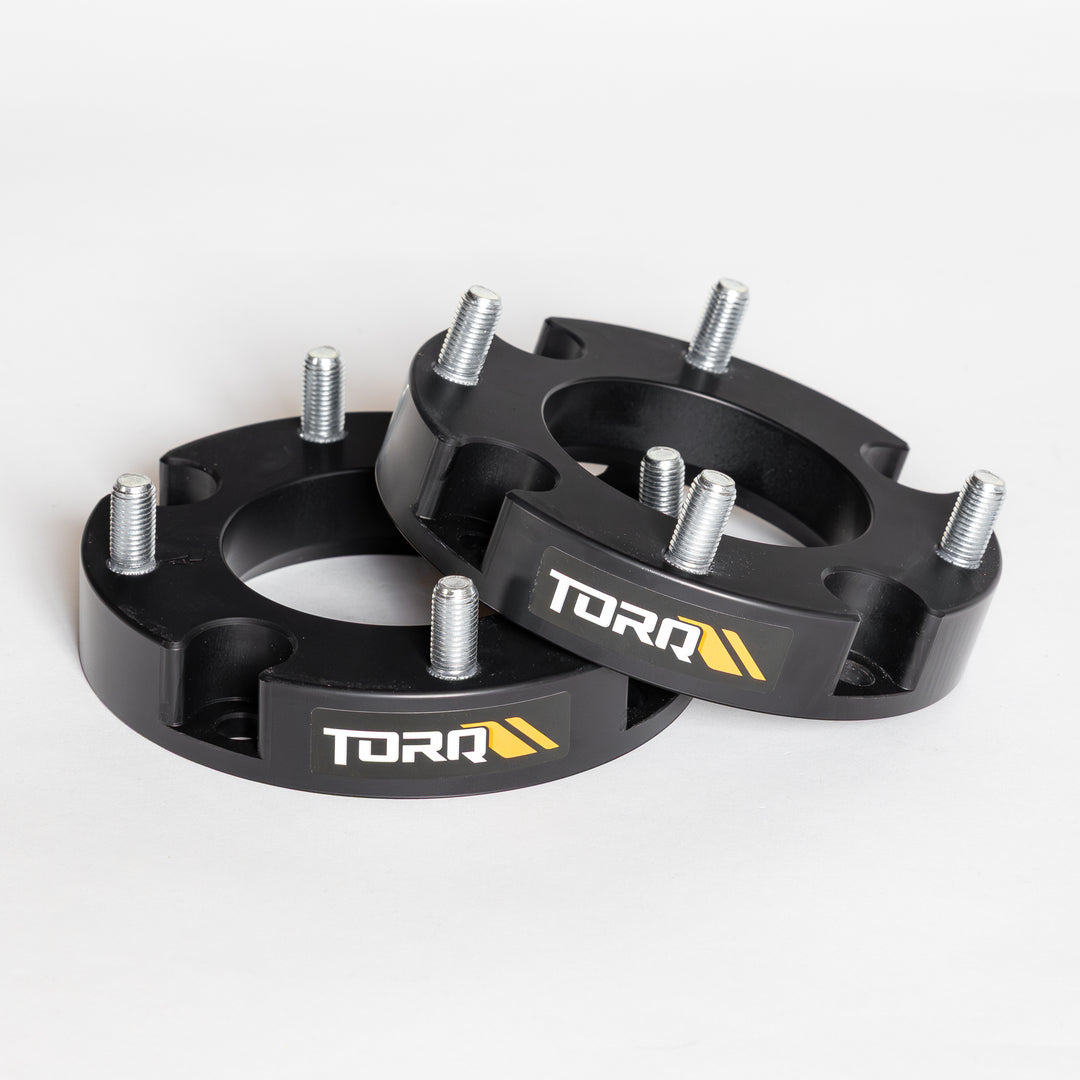

✓ Pair of TORQ CNC-machined billet front leveling spacers
✓ Required installation hardware
✓ Installation instructions
Material: 6061-T6 Billet Aluminum
Finish: Black Anodized
Front Lift: Approximately 2"
Made In: Utah, USA
Warranty: Limited Lifetime
INSTALLATION
Bolt-On Design. Factory Components Retained.
The TORQ 2" Front Leveling Kit integrates with the factory front strut assembly, allowing the original Toyota shocks and springs to remain in place.
✓ No cutting required
✓ No welding required
✓ Factory shocks and springs retained
✓ Spring compressor required
✓ Alignment recommended after installation
Installation requires removal and disassembly of the factory front strut assembly. Because the coil spring must be compressed during installation, a spring compressor is required.
If you're not experienced or comfortable working with compressed coil springs, we recommend having the kit installed by a qualified professional.
FREQUENTLY ASKED QUESTIONS
Does this change ride quality?
Because the TORQ 2" Leveling Kit retains your factory shocks and springs, it also retains the basic spring and damping characteristics of the factory suspension. You get the improved stance and added front height without replacing the suspension components that determine much of your 4Runner's factory ride quality.
Will I need an alignment after installation?
Yes. We recommend a professional alignment after installing the TORQ 2" Front Leveling Kit. Any time front ride height is changed, alignment should be checked and corrected to help maintain proper handling and tire wear.
Will this fit my TRD Pro?
Yes. The TORQ 2" Front Leveling Kit is compatible with 4Runner TRD Pro models. Simply select the correct kit for your 4Runner generation when ordering.
If you're looking for a complete front-and-rear lift for your TRD Pro rather than a front-only level, TORQ also offers dedicated 2" TRD Pro Lift Kits for both Gen 5 and Gen 6 4Runners.
What size tires can I run?
See our Gen 5 and Gen 6 Wheel & Tire Fitment Guide above. Tire clearance depends on generation, tire size, wheel width and offset, alignment and vehicle configuration.
Does installation require a spring compressor?
Yes. Installation requires removal and disassembly of the factory front strut assembly, so a spring compressor is required.
If you're not experienced or comfortable working with compressed coil springs, we recommend professional installation.
Is cutting or welding required?
No. The TORQ 2" Front Leveling Kit is a bolt-on installation and does not require cutting or welding.
Where is the TORQ 2" Leveling Kit made?
The TORQ 2" Front Leveling Kit is designed, machined and built in Utah, USA. Each spacer is CNC-machined from 6061-T6 billet aluminum and black anodized for corrosion resistance and a clean OEM+ appearance.
Manufacturing our components in the USA gives TORQ greater control over material, machining, fit and finished quality.
WHICH 4RUNNER LIFT IS RIGHT FOR YOU?
From a simple front level to a complete lift, choose the TORQ setup that fits how you want to build your 4Runner.
2" FRONT LEVEL
Clean, Simple Level
Reduce factory rake and give your 4Runner a more balanced stance while retaining the factory shocks and springs.
Best for: Daily driving, improved stance and moderate tire upgrades.
3" LIFT KIT
More Height. More Aggressive Stance.
For 4Runner owners who want more overall lift and a more aggressive stance while retaining the factory shocks and springs.
Best for: Drivers looking to move beyond a simple front level to a complete front-and-rear lift.
CHOOSE YOUR 4RUNNER:
2010–2024 4Runner — Gen 5
VIEW GEN 5 3" LIFT KIT →
2025+ 4Runner — Gen 6
VIEW GEN 6 3" LIFT KIT →
TRD PRO LIFT KIT
A Complete Lift for the TRD Pro
A complete front-and-rear solution designed around the factory TRD Pro suspension.
Best for: TRD Pro owners looking for more than a front-only level while retaining the factory TRD Pro shocks and springs.
CHOOSE YOUR 4RUNNER:
2015–2024 4Runner TRD Pro — Gen 5
VIEW GEN 5 TRD PRO LIFT KIT →
2025+ 4Runner TRD Pro — Gen 6
VIEW GEN 6 TRD PRO LIFT KIT →
BUILT FOR EVERY ROAD AHEAD
Designed • Machined • Built in Utah
From material selection to final machining, TORQ components are engineered and manufactured in the USA for Toyota owners who care about fit, finish and getting the details right.
Limited Lifetime Warranty
