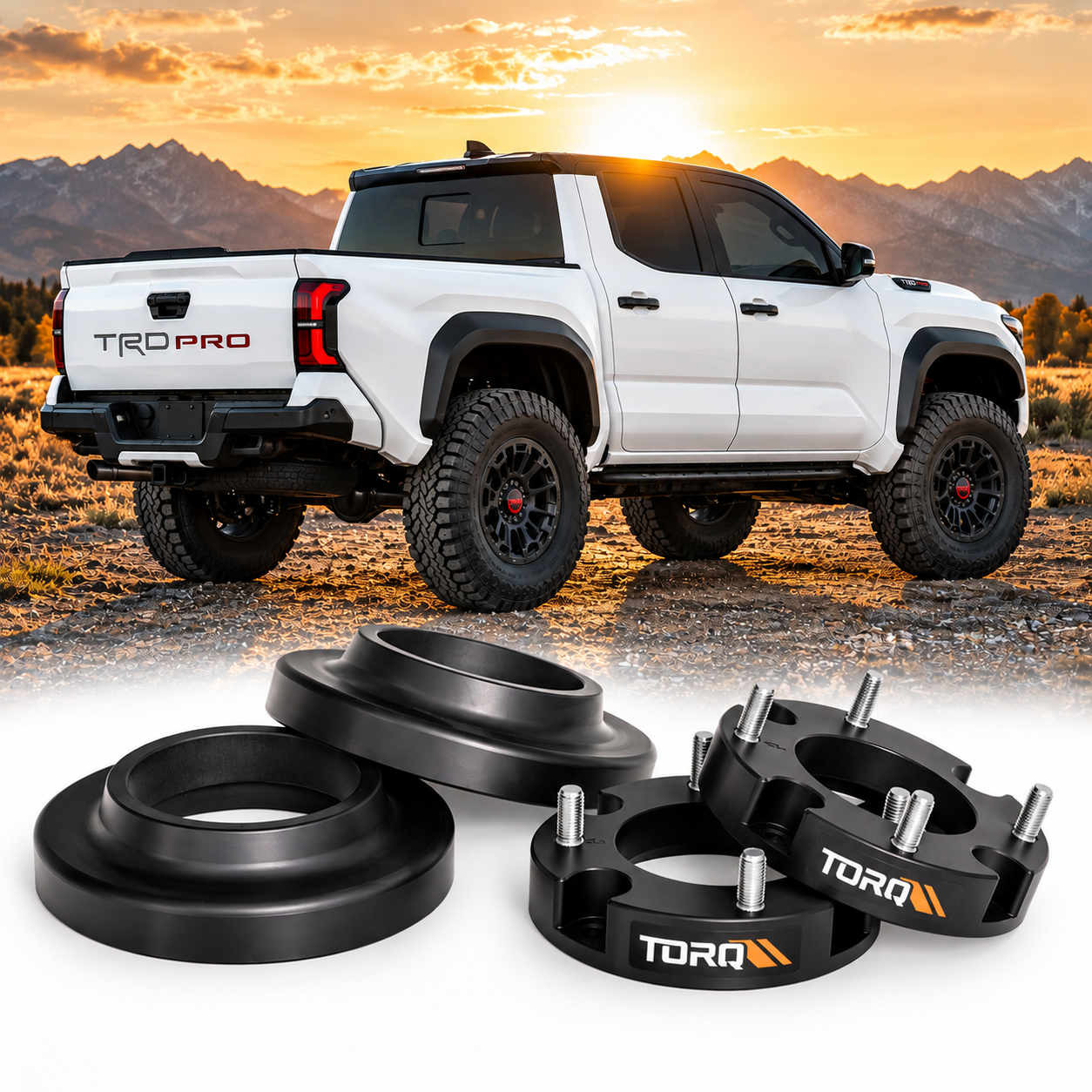

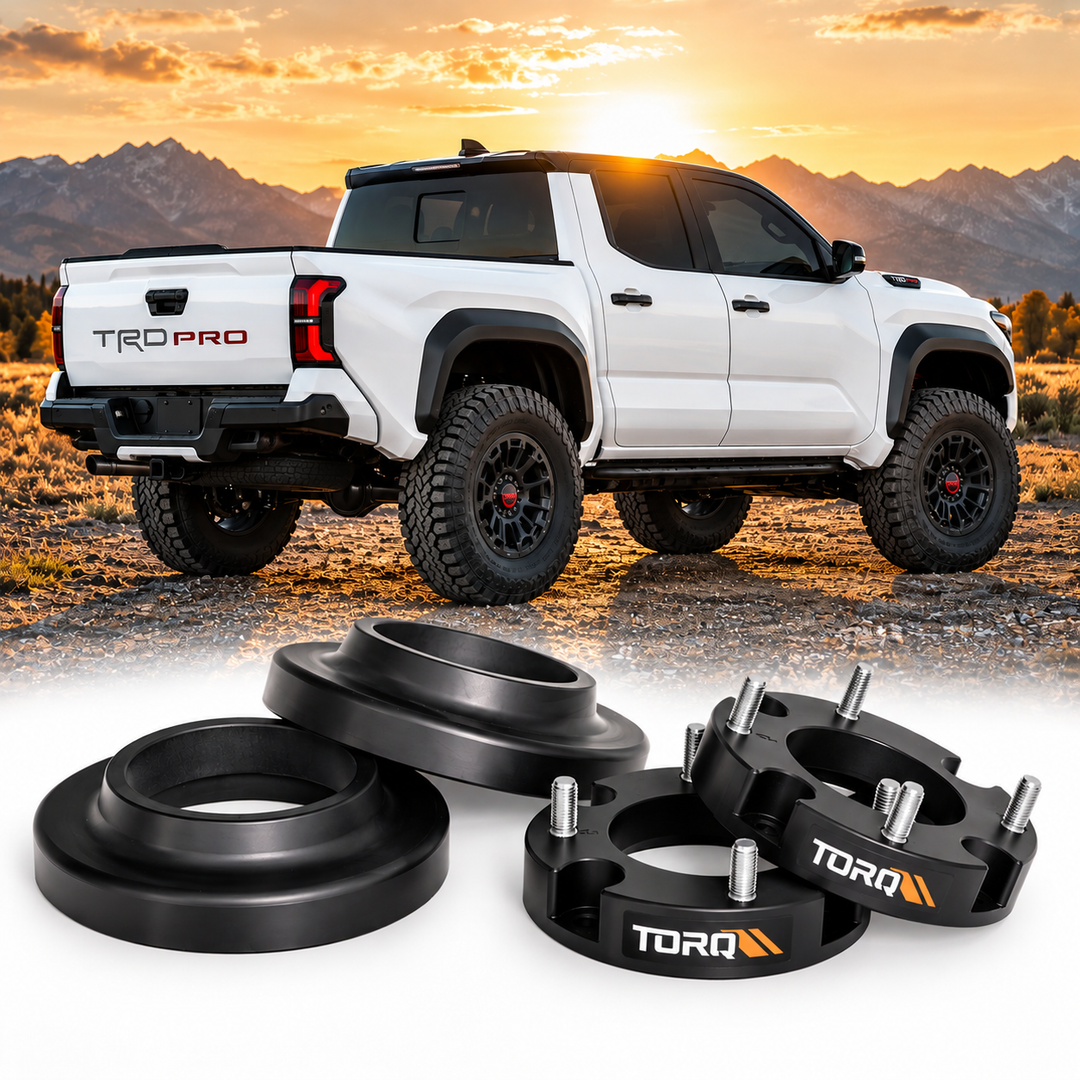

2024+ Toyota Tacoma TRD PRO 2" Lift Kit | 4th Gen
TORQ Engineering Billet Front Strut & Rear Coil Spacers
2" Additional Front & Rear Lift | CNC-Machined 6061-T6 Billet | Made in USA
Lift with Purpose. Keep the TRD PRO Suspension.
Your Tacoma TRD PRO already comes equipped with premium factory suspension. TORQ's 2" TRD PRO Lift Kit lets you keep it.
Designed specifically for the 2024+ Toyota Tacoma TRD PRO, this kit adds approximately 2 inches of additional front and rear lift while retaining the factory TRD PRO shocks and suspension.
The result is a taller, more aggressive stance with additional clearance for 34" and 35" tire setups—without replacing the suspension you already paid for.
✓ 2" Additional Front & Rear Lift
✓ Retains Factory TRD PRO Suspension
✓ CNC-Machined Billet Aluminum
✓ Designed • Machined • Built in Utah
_______________________________________________________________
ENGINEERED AROUND THE TRD PRO
More height and clearance without replacing the premium factory suspension.
2" More Height
Adds approximately 2" of additional front and rear lift to the factory-raised TRD PRO, creating a taller stance with additional clearance for larger tire setups. |
Keep TRD PRO Suspension
Designed around the factory TRD PRO suspension, allowing you to gain additional height while retaining the premium shocks and suspension components already on your Tacoma. |
Premium Billet Components
CNC-machined from 6061-T6 billet aluminum and black anodized for precise fit, corrosion resistance and a clean OEM+ appearance. |
WHEEL & TIRE FITMENT
FACTORY 33s → UP TO 35s
The 2024+ Tacoma TRD PRO already comes equipped with approximately 33" tires and a factory-raised suspension. The TORQ 2" TRD PRO Lift Kit builds on that factory setup, providing additional clearance for popular 34" and 35" tire combinations while retaining the factory TRD PRO suspension.
| Tire Setup | Approx. Diameter | TORQ Recommendation |
|---|---|---|
| 265/70R18 | 32.6" | Factory TRD PRO size |
| 285/70R18 | 33.7" | Excellent upgrade |
| 285/75R17 | 33.8" | Excellent 34" class option |
| 295/70R18 | 34.3" | Excellent larger-tire option |
| 35x12.50R17 | ~35" | 35" target — wheel setup and minor clearance modifications may be required |
| 35x12.50R18 | ~35" | 35" target — wheel setup and minor clearance modifications may be required |
WANT TO RUN 35s?
For the easiest fitment, narrower 34–35" class tires generally provide more clearance than wider 35x12.50 combinations. Wheel width and offset become increasingly important as tire size and width increase.
35" tire setups are possible with the proper wheel and tire combination, but some setups may require minor clearance modifications such as liner adjustment or repositioning/removal of factory clearance components.
Tire fitment varies by tire manufacturer, actual tire dimensions, wheel width and offset, alignment settings and individual vehicle. Always verify clearance at full steering lock and throughout suspension travel.
WHEEL OFFSET MATTERS
As tire size and width increase, wheel width and offset become just as important as lift height. Moving the wheel farther outward can create a more aggressive stance, but it can also increase interference at the liner and surrounding clearance points.
For 35" setups, choose wheel width, offset and tire size together rather than selecting tire size alone.
SPECS AT A GLANCE
Vehicle: 2024+ Toyota Tacoma TRD PRO (4th Gen)
Lift Height: Approx. 2" additional front & rear
Front: CNC-machined billet front strut spacers
Rear: CNC-machined billet rear coil spacers
Material: 6061-T6 billet aluminum
Finish: Black anodized
Factory Suspension: Retained
Spring Compressor: Required
Cutting/Welding: Not required
Alignment: Required after installation
Warranty: Limited Lifetime Warranty
Made In: USA
INSTALLATION
Bolt-On Design. Factory TRD PRO Suspension Retained.
✓ Bolt-on installation
✓ No cutting or welding required
✓ Factory TRD PRO suspension retained
✓ Professional alignment required after installation
✓ Spring compressor required
Installation of the TORQ 2" TRD PRO Lift Kit requires a spring compressor to safely disassemble the factory front strut assemblies.
Because coil springs store significant energy, we recommend professional installation if you do not have the proper equipment or experience working with loaded suspension components.
The kit installs without cutting or welding and allows the factory TRD PRO shocks and suspension to remain in place.
FREQUENTLY ASKED QUESTIONS
Common Tacoma TRD PRO Lift Questions
Does this add 2" on top of the factory TRD PRO height?
Yes. The TORQ kit is designed to add approximately 2" of additional front and rear lift to the factory-raised 2024+ Tacoma TRD PRO.
Does this replace my factory TRD PRO suspension?
No. The kit is specifically designed around the factory TRD PRO suspension, allowing you to retain the factory shocks and suspension components while adding additional height.
Can I run 35" tires?
35" tires are a realistic target with the proper wheel and tire combination. Actual clearance varies based on tire dimensions, wheel width and offset, alignment and individual vehicle setup. Some 35" combinations may require minor clearance modifications.
Do I need a spring compressor?
Yes. Installation requires disassembly of the factory front strut assemblies, so a proper spring compressor is required.
Do I need an alignment after installation?
Yes. A professional alignment is required after installation.
Does this fit a non-TRD PRO Tacoma?
No. This kit is designed specifically around the factory suspension on the 2024+ Tacoma TRD PRO. TORQ offers separate lift and leveling options for non-TRD PRO 4th Gen Tacomas.
Is this kit made in the USA?
Yes. TORQ billet lift components are CNC-machined in the USA.
WHICH TACOMA LIFT IS RIGHT FOR YOU?
2" FRONT LEVEL → link
3" LIFT KIT → link
TRD PRO 2" LIFT KIT → ✓ YOU'RE VIEWING THIS KIT
BUILT FOR EVERY ROAD AHEAD
Engineered for those who expect more
DESIGNED • MACHINED • BUILT IN UTAH
